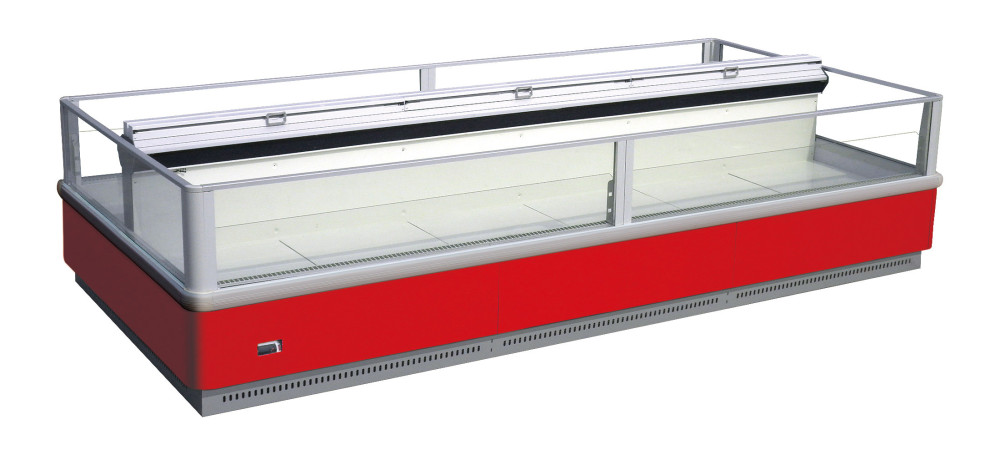

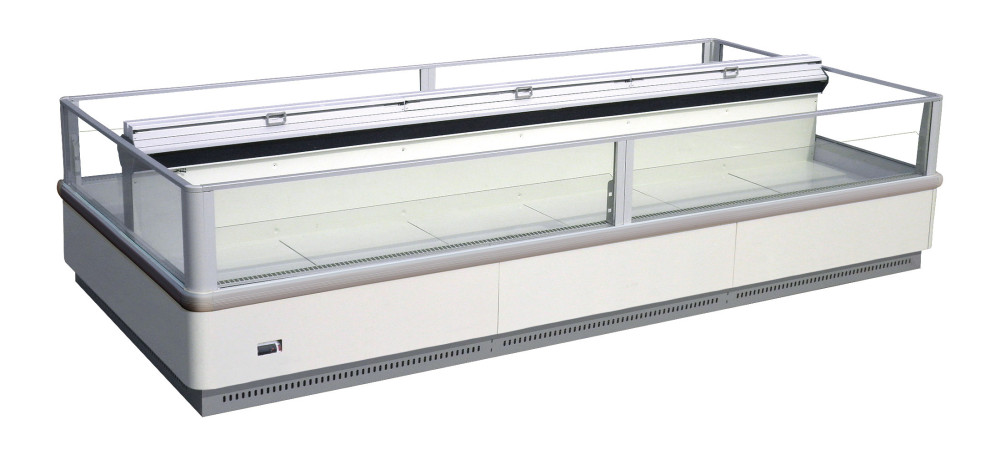

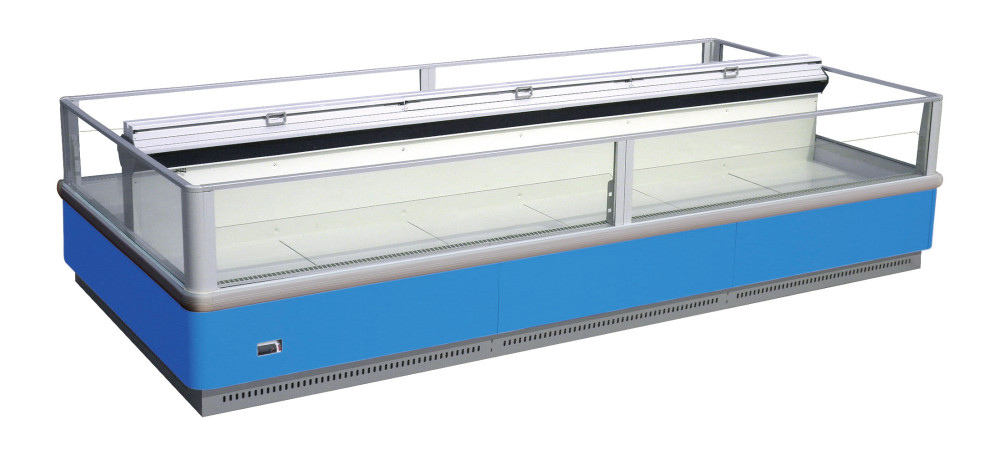

Open Island Freezer

›

‹

›

Open Island Freezer

-18~-22℃ for frozen foods, ice cream, sea foods, etc.
3 basic length specifications:1875mm, 2500mm and 3750mm.Can be jointed together freely to suit your length requirements. Terminal cabinet is available.
Tel:4000870872
WhatsApp:+86 17865173950
Email:sales@xiaoyacold.com
Product Overview
Product Specifications
Product Showcase
Application Scenarios

PURPOSE

★-18~-22℃ for frozen foods, ice cream, sea foods, etc.

★3 basic length specifications:1875mm, 2500mm and 3750mm.Can be jointed together freely to suit your length requirements. Terminal cabinet is available.


CHARACTERISTIC

★Asymmetric laminar flow air curtain effects the cooling evenly and thoroughly solve the problem of frost-blocking.

★High efficiency evaporator and imported expansion valve are used to cut down the defrost time and save energy.

★Spare parts for anti-corrosion anti-rust treatment, aluminum alloy with matte oxidation treatment, exterior appearance parts in electrostatic spraying treatment.

★Night fibre curtain, night cover or top sliding door are optional to help in energy-saving and cost-reducing and general hygiene of commodity.

★Optional non-cooling storage rack can be mounted on top of the freezer for correlated non-refrigerated product selling.

★Optional  computer  remote  monitoring  system  can monitor the running of all commodities.


NOProduct TypeL*W*H(mm)Temp.Net Volume(L)
W1530 Night curtain freezer
1DD-E7YD-F185Y-011875*1530*902—18~-22℃803
2DD-E7YD-F255Y-012500*1530*902—18~-22℃1070
3DD-E7YD-F375Y-013750*1530*902—18~-22℃1605
4DD-E7YF-F155Y-011530*1530*902—18~-22℃427
W1830 Night curtain freezer
1DD-E7XW-F185Y-011875*1830*902—18~-22℃1007
2DD-E7XW-F255Y-012500*1830*902—18~-22℃1343
3DD-E7XW-F375Y-013750*1830*902—18~-22℃2015
4DD-E7XF-F175Y-011830*1100*902—18~-22℃521
W2030 Night curtain freezer
1DD-E7HS-F185Y-011875*2030*902—18~-22℃1144
2DD-E7HS-F255Y-012500*2030*902—18~-22℃1525
3DD-E7HS-F375Y-013750*2030*902—18~-22℃2288
4DD-E7HS-F175Y-012030*1100*902—18~-22℃584
